DRG100 DIGITAL RADIO GATEWAY

One Gateway. Endless Interoperability.

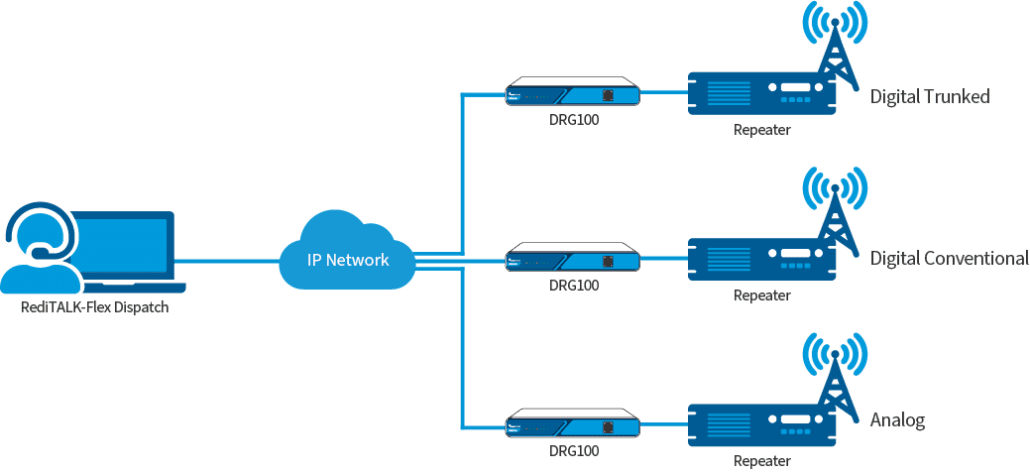

The DRG100 Digital Radio Gateway is Omnitronics’ original and trusted solution for seamless integration between dispatch console IP networks and radio IP networks. It is purpose-built with proprietary hardware and operating system software, acting as a natural firewall to deliver smooth integration without compromising your existing infrastructure. The DRG100 offers unmatched security, flexibility, and reliability.

Effortlessly pairing with RediTALK-Flex, Altusomni, and Omnicore dispatch systems, the DRG100 is a versatile tool for any radio dispatch operation. It’s also available in a P25-ready version, complete with an onboard vocoder, removing the need for separate vocoders at each operator console.

Whether you’re managing analog, digital, conventional, trunked, open-standard, or proprietary radio systems, the DRG100 connects them all, making it an ideal solution for organizations that demand interoperability without limitations. Alpha Prime Communications provides the expertise and support to make the DRG100 Digital Radio Gateway work for you.

DRG100 Digital Radio Gateway

DRG100 Digital Radio Gateway

  • Complete Digital Radio Interoperability
    The DRG100 is built for true interoperability, seamlessly connecting multiple digital and analog radio protocols without compromising features. Whether you’re managing mixed fleets or transitioning from legacy systems, the DRG100 ensures clear, uninterrupted communication across every channel.
  • Encryption for Security
    Keep communications protected with built-in encryption, safeguarding against unauthorized access and eavesdropping. The DRG100 supports secure, private communication in sensitive or mission-critical environments.
  • P25 Version Available
    A P25-compatible version with an onboard vocoder eliminates the need for vocoders at every operator console. This reduces hardware requirements and streamlines system design for organizations using the P25 standard.
  • Flexible Network Connectivity
    The DRG100 offers multiple IP connectivity options, including SIP, multicast, or unicast, adapting to your network configuration. Integration is fast, simple, and effective.
  • Easy Migration Path
    With support for analog and digital modes, the DRG100 ensures a smooth transition as your organization upgrades its radio infrastructure, eliminating the need for a complete system overhaul.
  • Freedom of Choice
    The DRG100 supports a full range of dispatch consoles and radio equipment, including RediTALK-Flex, altusomni, and Omnicore. Choose the solution that fits your workflow without being locked into a single vendor.
  • Redundant and Reliable
    Built-in redundancies and backup paths ensure consistent performance, even during network issues or hardware failures. The DRG100 is engineered to keep your communication lines open when reliability matters most.

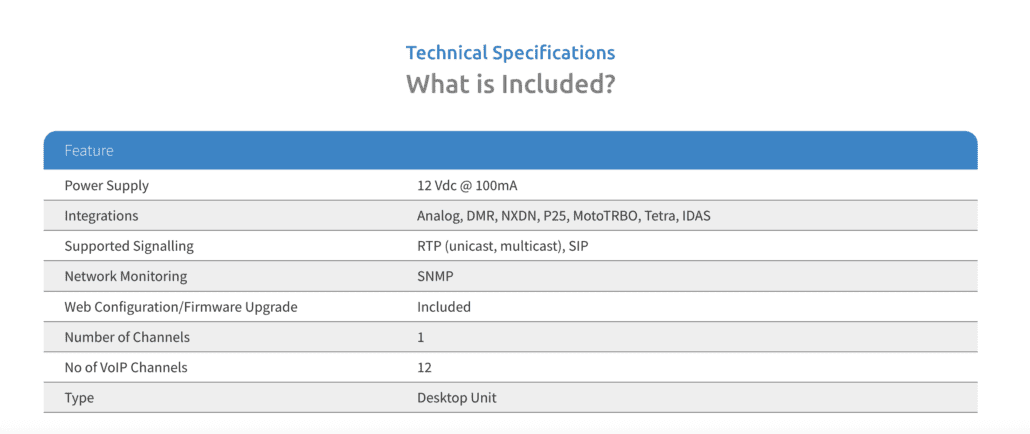

  • Number of channels (timeslots): 1
  • 10/100-BaseT Ethernet port via RJ-45 connectors: 1
  • Powered from a 12V DC plug pack
  • Multicast addressing support
  • Multiple voice codecs for compression
  • Voice Activity Detection (VAD) with silence suppression for bandwidth efficiency
  • Software attenuation of Radio-side levels
  • Status and diagnostic LED indicators on the front panel
  • Software configurable and firmware upgradeable via web interface
  • Static or dynamic IP address configuration
  • Optional voice encryption with user-configurable key
  • Supports incoming SIP connections from Omnitronics equipment and software
  • Secure communications using AES encryption (Australia model only)
  • 4-wire plus E&M signals on Transceiver port, compatible with Omnitronics 619 Audio Bridges
  • USB ‘master’ port
  • RS-232 radio control port

Recommended Industries

  • Police

  • Fire

  • Public Safety

  • Emergency Services

  • Utilities

  • Mining

  • Maritime
